Visible Frame NFR Pocket Door Kit

00019
£513.00
In stock
1
Product Details
Brand: Selo Enigma
VAT: Prices Exclude VAT

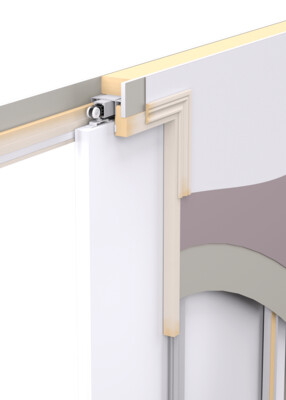

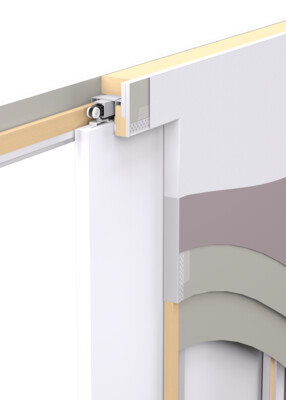

Visible Frame Pocket Door Kit Only

- Door Leaf Not Included

- Non Fire Rated

- 120mm single boarded wall build up, plasterboard to plasterboard

- Option for double boarded 145mm kits available on request (recommended for doors over 2.2m tall)

Included in your kit:

- Enigma Pocket Door Kit

- White Primed Timber Trims, architrave by others

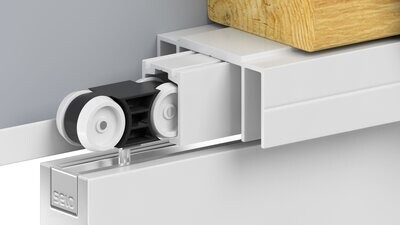

- Self Lubricating Running Gear and Track for doors up to 140kg

- Guide Pin & Chanel

- Door Stops (in track stops), including remote stop for easy installation

The door sizing guide for kit codes is as follows:

Single timber door leaf Double timber door leaf
Up to 2130mm high Product Code Up to 2130mm high Product Code
400 - 926mm E10 T 400 - 926mm E10 DD T
927 - 1220mm E20 T 927 - 1220mm E20 DD T
1221 - 1500mm E30 T 1221 - 1650mm E30 DD T
Up to 2850mm high Up to 2850mm high
400 - 926mm E11 T 400 - 926mm E11 DD T
927 - 1220mm E22 T 927 - 1220mm E22 DD T
1221 - 1500mm E33 T 1221-1650mm E33 DD T

NB. The following optional extras are not compatible with each other:

- Touch Latch and Soft Open & Close

- Simultaneous opening with either Touch Latch, Soft Close or Soft Open & Close

The soft close and soft close & open mechanisms are not recommended for doors over 80kg each.
