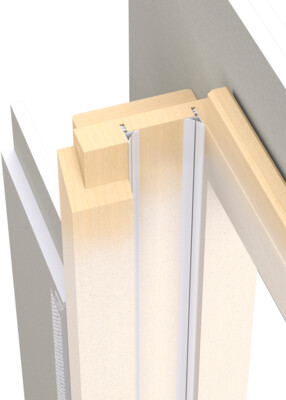

Shadow Gap Frame Pocket Door Kit Only
- Door Leaf Not Included
- Non Fire Rated
- 145mm double boarded wall build up, plasterboard to plasterboard
Included in your kit:
- Enigma Pocket Door Kit

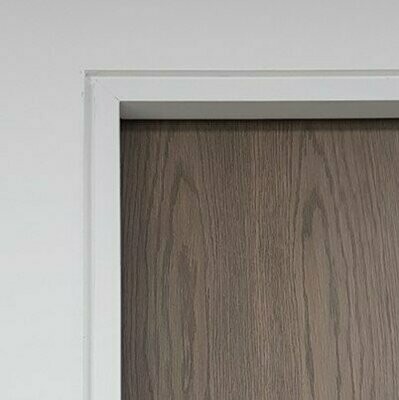

- White Primed Timber Shadow Gap Trims

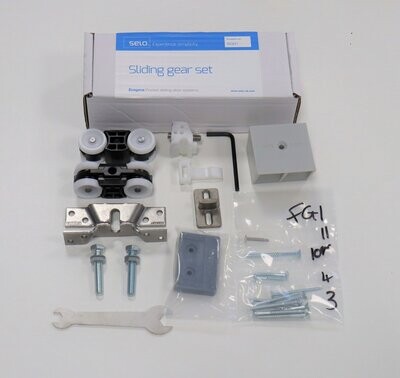

- Self Lubricating Running Gear and Track for doors up to 140kg
- Guide Pin & Chanel
- Door Stops (in track stops), including remote stop for easy installation
The door sizing guide for kit codes is as follows:
Single timber door leaf | Double timber door leaf | |||
Up to 2130mm high | Product Code | Up to 2130mm high | Product Code | |
400 - 926mm | E10 S | 400 - 926mm | E10 DD S | |
927 - 1220mm | E20 S | 927 - 1220mm | E20 DD S | |
1221 - 1500mm | E30 S | 1221 - 1650mm | E30 DD S | |
Up to 2850mm high | Up to 2850mm high | |||
400 - 926mm | E11 S | 400 - 926mm | E11 DD S | |
927 - 1220mm | E22 S | 927 - 1220mm | E22 DD S | |
1221 - 1500mm | E33 S | 1221-1650mm | E33 DD S |
NB. The following optional extras are not compatible with each other:
- Touch Latch and Soft Open & Close
- Simultaneous opening with either Touch Latch, Soft Close or Soft Open & Close
The soft close and soft close & open mechanisms are not recommended for doors over 80kg each.
