Concealed Frame Pocket Door Kit Only
- Door Leaf Not Included
- FD30 fire rating

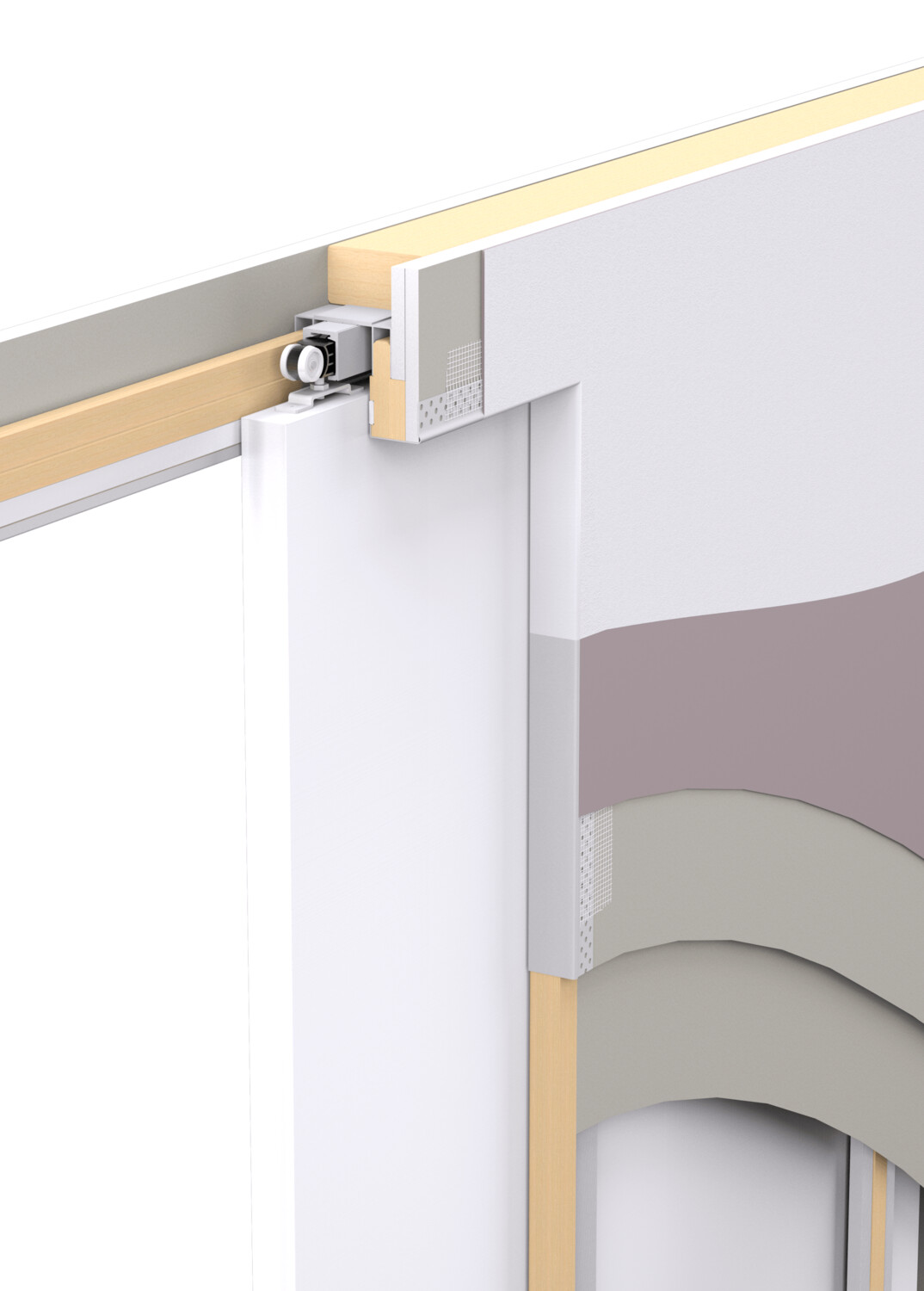

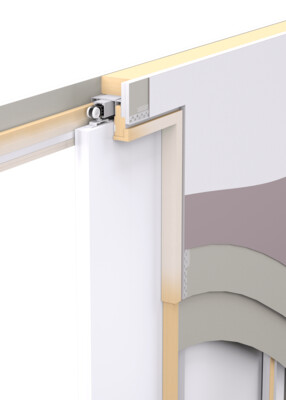

- 145mm double boarded wall build up, plasterboard to plasterboard
Included in your kit:
- Enigma Pocket Door Kit
- White Primed Metal Plaster In Trims

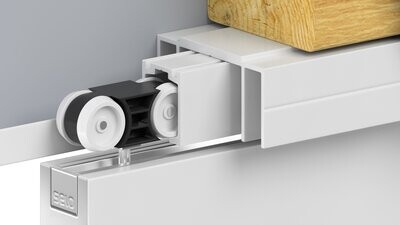

- Self Lubricating Running Gear and Track for doors up to 140kg
- Guide Pin & Chanel
- Door Stops (in track stops), including remote stop for easy installation
The door sizing guide for kit codes is as follows:
Single timber door leaf | Double timber door leaf | |||
Up to 2130mm high | Product Code | Up to 2130mm high | Product Code | |
400 - 926mm | E10 C FR | 400 - 926mm | E10 DD C FR | |
927 - 1220mm | E20 C FR | 927 - 1111mm | E20 DD C FR | |
1221 - 1500mm | E30 C FR | |||
Up to 2850mm high | Up to 2850mm high | |||
400 - 926mm | E11 C FR | 400 - 926mm | E11 DD C FR | |
927 - 1220mm | E22 C FR | 927 - 1111mm | E22 DD C FR | |
1221 - 1500mm | E33 C FR |
NB. The following optional extras are not compatible with each other:
- Touch Latch and Soft Open & Close
- Simultaneous opening with either Touch Latch, Soft Close or Soft Open & Close
The soft close and soft close & open mechanisms are not recommended for doors over 80kg each.
